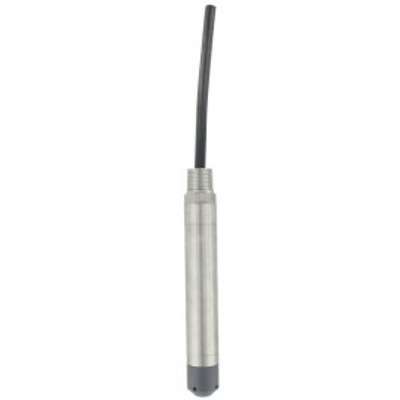

Dwyer SBLT2-20-60-ETFE Level Transmitter, Submersible ETFE, 60"

Availability: 8 to 9 Weeks

Dwyer SBLT2-20-60-ETFE Offers

• Excellent chemical compatibility
• Lightning and surge protection
• Maintenance free vent filter
• Slim design for tight applications
• Measures the height of liquid above the position in the tank referenced to atmospheric pressure.
• The transmitter consists of a piezoresistive sensing element, encased in a 316 SS housing.
• Bullet nose design protects the diaphragm from damage.
• Incorporates lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both power supply surges and lightning ground strike transients (surge protection is not guaranteed and is not covered by warranty).
• Comes equipped with a 270-pound tensile strength shielded and vented cable.
• Ventilation tube in the cable automatically compensates for changes in atmospheric pressure above the tank.
• The vent is protected with a maintenance free filter eliminating particulate or water droplets from entering the transducer.

Specifications:

• Service: Compatible liquids.
• Wetted Materials: 316 SS, 316L SS, Buna-N; Cable: Polyurethane or ETFE; Bullet Nose: PVC.
• Accuracy: ±0.25% of full scale.
• Temperature Limit: 0 to 150°F (-18 to 66°C)
• Compensated Temperature Range: 0 to 140°F (-18 to 60°C)
• Thermal Effect: ±0.02% full scale/°F.
• Pressure Limit: 2X full scale.
• Power Requirement: 13 to 30 VDC
• Output Signal: 4 to 20 mA DC, 2-wire.
• Response Time: 50 ms.
• Max. Loop Resistance: 900 ohms at 30 VDC.
• Electrical Connections: Wire pigtail.
• Mounting Orientation: Suspended in tank below level being measured.
• Weight: 2.2 lb (1.0 kg).
• Electrical Protection: Lightning and surge protection.
• Agency Approvals: None.

Features

• Maintenance free vent filter
• Slim design for tight applications
• Measures the height of liquid above the position in the tank referenced to atmospheric pressure
• The transmitter consists of a piezoresistive sensing element, encased in a 316 SS housing
• Bullet nose design protects the diaphragm from damage
• Incorporates lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both power supply surges and lightning ground strike transients (surge protection is not guaranteed and is not covered by warranty)
• Comes equipped with a 270-pound tensile strength shielded and vented cable
• Ventilation tube in the cable automatically compensates for changes in atmospheric pressure above the tank
• The vent is protected with a maintenance free filter eliminating particulate or water droplets from entering the transducer

Applications

• Well monitoring
• Ground water monitoring
• Environmental remediation
• Surface water monitoring
• Down hole
• Water Tanks

Dwyer SBLT2-20-60-ETFE Specifications

Specifications

Effet thermique

< ±0.02%/100°F

What's included with the Dwyer SBLT2-20-60-ETFE

• Dwyer SBLT2-20-60-ETFE Level Transmitter, Submersible ETFE, 60"
