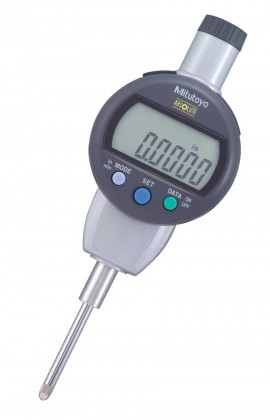

Mitutoyo 543-717B-02 Digimatic Indicator, 0.5", low force
SKU: 543-717B-02
Availability: 2 to 3 Weeks Mitutoyo 543-717B-02 Offers Features Large, easy-to-read LCD GO/±NG judgment can be performed by setting upper and lower tolerance limits The judgment result (GO/±NG) can be displayed in full-size characters The positive/negative count resulting from the spindle’s up/down movement can be toggled Employing the ABSOLUTE linear encoder, the ID-C always displays the spindle “Absolute Position” from the origin at power-on
Availability: 2 to 3 Weeks
Mitutoyo 543-717B-02 Offers
Features
- Large, easy-to-read LCD
- GO/±NG judgment can be performed by setting upper and lower tolerance limits
- The judgment result (GO/±NG) can be displayed in full-size characters
- The positive/negative count resulting from the spindle's up/down movement can be toggled
- Employing the ABSOLUTE linear encoder, the ID-C always displays the spindle "Absolute Position" from the origin at power-on
- Unlimited response speed eliminates over-speed errors
- The ID-C indicator face can be rotated 330° to an appropriate angle for easy reading
- SPC data output
Mitutoyo 543-717B-02 Specifications
Specifications
| Range | 0.5" (12.7 mm) |
| Resolution | 0.0005" (0.01 mm) |
| Accuracy | 0.001" (0.0254) |
| Display | LCD |
| Measuring Force | Less than 0.2, 0.3, 0.4, 0.5 N |
| Type | ANSI/AGD |
| Battery | SR44, 938882 |
| Battery Life | Approximately 5000 hours under normal use |
What's included with the Mitutoyo 543-717B-02
- Indicator
- Inspection Certificate
- Battery
- Manual
Mitutoyo 543-717B-02 Digimatic Indicator, 0.5", low force. Great savings PLUS Free Shipping when you order today on EquipTestPro.com.
