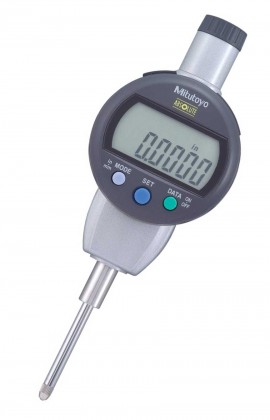

Mitutoyo 543-727B-02 Digimatic Indicator, 1" (25.4 mm)
SKU: 543-727B-02
Availability: 9 to 10 Weeks Mitutoyo 543-727B-02 Offers Features Large, easy-to-read LCD GO/NO-GO judgment can be performed by setting upper and lower tolerance limits The positive/negative count resulting from the spindle’s up/down movement can be toggled Employing the absolute linear encoder, the ID-C always displays the spindle “absolute position” from the origin at power-on Unlimited response speed eliminates over-speed errors The ID-C indi
Availability: 9 to 10 Weeks
Mitutoyo 543-727B-02 Offers
Features
- Large, easy-to-read LCD
- GO/NO-GO judgment can be performed by setting upper and lower tolerance limits
- The positive/negative count resulting from the spindle's up/down movement can be toggled
- Employing the absolute linear encoder, the ID-C always displays the spindle "absolute position" from the origin at power-on
- Unlimited response speed eliminates over-speed errors
- The ID-C indicator face can be rotated 330° to an appropriate angle for easy reading
- With SPC data output
Mitutoyo 543-727B-02 Specifications
Specifications
| Range | 1" (25.4 mm) |
| Resolution | 0.0005" (0.01 mm) |
| Accuracy | 0.001" |
| Display | LCD |
| Contact Point | Stem dial 3⁄8", 4 to 48 UNF thread |
| Measuring Force | Less than 1.8 N |
| Type | ANSI/AGD |
| Battery | SR44 |
| Battery Life | Approximately 5000 hours under normal use |
What's included with the Mitutoyo 543-727B-02
- Indicator
- Inspection Certificate
- Battery
- Manual
Mitutoyo 543-727B-02 Digimatic Indicator, 1" (25.4 mm). Great savings PLUS Free Shipping when you order online at EquipTestPro.com.
