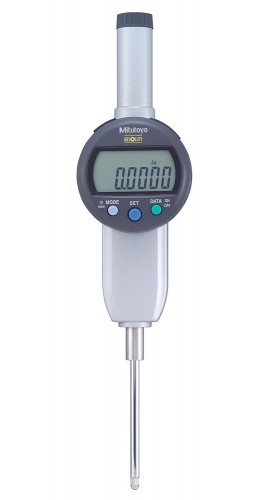

Mitutoyo 543-737B-02 Absolute Digital Indicator ID-C, 0-2" (0-50mm), SPC Output
SKU: 543-737B-02
Availability: Regular Price Mitutoyo 543-737B-02 Offers Features GO/±NG judgment can be performed by setting upper and lower tolerance limits. The judgment result (GO/±NG) can be displayed in full-size characters The positive/negative count resulting from the spindle’s up/down movement can be toggled Internal calculations using the simple formula of [F(x)=Ax)] are available Employing the ABSOLUTE linear encoder, the ID-C always displays the spi
Availability: Regular Price
Mitutoyo 543-737B-02 Offers
Features
- GO/±NG judgment can be performed by setting upper and lower tolerance limits. The judgment result (GO/±NG) can be displayed in full-size characters
- The positive/negative count resulting from the spindle's up/down movement can be toggled
- Internal calculations using the simple formula of [F(x)=Ax)] are available
- Employing the ABSOLUTE linear encoder, the ID-C always displays the spindle "Absolute Position" from the origin at power-on. Also unlimited response speed eliminates over-speed errors
- The ID-C indicator face can be rotated 330° to an appropriate angle for easy reading
Mitutoyo 543-737B-02 Specifications
Specifications
| Range | 0-2"/ 0-50.8mm |
| Accuracy | 0016" |
| Contact Point | Stem dia 3 8 in 4-48 UNF Thread |
| Resolution | .0005"/0.01mm |
| Measuring Force | Less than 2.3N |
| Type | ANSI/AGD ID-C Indicator |
| SPC Output | Yes |
What's included with the Mitutoyo 543-737B-02
- Operation Manual
- Inspection Certificate
- Battery
