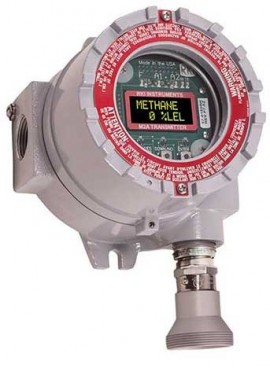

RKI 65-2649RK-HC-04 M2A Series IR Hydrocarbons (isobutane) LEL 0-100% sensor / transmitter
SKU: 65-2649RK-HC-04
Availability: 2 to 3 Weeks RKI 65-2649RK-HC-04 Offers With four operating modes, the stand alone sensor operates with or without a controller. Features Direct digital readout with OLED cold temperature display 4-20 mA and digital Modbus outputs standard 2 fully programmable alarm relays and fail relay Non-intrusive calibration via magnetic wand Explosion proof construction Patented water repellent sensor cover User friendly setup, push buttons
Availability: 2 to 3 Weeks
RKI 65-2649RK-HC-04 Offers
With four operating modes, the stand alone sensor operates with or without a controller.
Features
- Direct digital readout with OLED cold temperature display
- 4-20 mA and digital Modbus outputs standard
- 2 fully programmable alarm relays and fail relay
- Non-intrusive calibration via magnetic wand
- Explosion proof construction
- Patented water repellent sensor cover
- User friendly setup, push buttons and OLED menus
- Long-life sensors (2 + years typical)
Applications
- Petrochemical plants
- Refineries
- Water and wastewater treatment plants
- Pulp and paper mills
- Manufacturing facilities
- Automotive
- Semiconductor plants
- Chemical plants
RKI 65-2649RK-HC-04 Specifications
Specifications
| Sensors | Infrared |
| Measuring Range | 0 to 100% Vol |
| Version | UL |
| Weather Resistant | Patented water repellent sensor coating |
| Display | Alphanumeric OLED display8 characters per line; 2 lines for gas concentration readoutUser-friendly calibration and setup |
| Alarm Indication | Visual LEDs. Alarm 1, Amber; Alarm 2, Red; Fail, Red |
| Relative Humidity | 5 to 95% RH non-condensing |
| Operating Voltage | 10 to 30 VDC |
| Enclosure | Explosion proof for Class I, Div 1, Groups B, C, D |
What's included with the RKI 65-2649RK-HC-04
- Stand Alone Sensor
- J-Box
- Remote Detector
- Calibration Adapter
- Splash Guard
RKI 65-2649RK-HC-04 M2A Series IR Hydrocarbons (isobutane) LEL 0-100% sensor / transmitter. Get Free Shipping when you order online at EquipTestPro.com.
