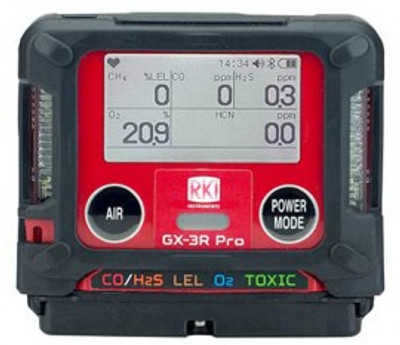

RKI GX-3R Personal Gas Detector, LEL combustibles/O2/CO/H2S

Availability: 2 to 3 Weeks

RKI 72-RA-D Offers

Representing the latest evolution of gas detection technology utilizing a new generation of micro sensors, this gas monitor has an LEL sensor that has a unique design with two active filaments in one sensor to increase it’s resistance to silicone poisoning. If one filament gets poisoned the second filament takes over. In addition, the new O2sensor is electrochemical with a three to five-year life span. In addition, this detector is small enough for a worker to practically wear in the breathing zone.

Features

• Smallest and lightest four gas monitor
• Simultaneous detection of four gases
• Simple two-button operation
• Non-compliance indicator
• Alarms: audible, visual, and vibration
• Three user adjustable alarm levels
• 25 hours of operation (Lithium-ion battery)
• Water and dust resistant design, IP66/68

Applications

• Personal monitoring
• Confined spaces
• Refineries/petrochemical
• Utilities
• Oil and gas
• Water/wastewater
• Fire services
• Construction

RKI 72-RA-D Specifications

Specifications

Gas Detected	(CO) H2 compensated, carbon monoxide (CO), Hydrogen Sulfide (H2S), H2S only, combustible gases (methane as standard), oxygen
Types of Alarms	Gas Alarm: 3 Increasing alarms, STEL, TWA, overscale alarm. O2 decreasing/increasing.Trouble alarm: Sensor disconnection, low battery, circuit error, calibration range error
Operating Temperature and Humidity	Continuous environment: -4 to 122°F (-20 to 50°C), 10 to 90% RH, non-condensingTemporary environment, 15 minutes: -40 to 140°F (-40 to 60°C), 0 to 95% RH, non-condensing
Response Time	Within 30 seconds (T90)
Power Source	Lithium-ion battery, approximately 25 hours after a 3 hour full charge
Approvals	ATEX, CSA
Case Material	Explosion proof, dust and water resistant to IP-66/68 (2 m, 1 h) approvalDrop height 23' (7.01 m)
Controls	Two buttons: POWER/MODE, AIR
Datalogging	Logs user ID, station ID, calibration and bump test history, alarm events and alarm interval trends
Dimension	2.2 x 2.55 x 1.02" (approximately 58 x 65 x 26 mm) without rubber boot2.4 x 2.63 x 1.06" (approximately 61 x 67 x 27 mm) with rubber boot
Weight	0.22 lbs (approximately 100 g) without rubber booth0.23 lbs (approximately 105 g) with rubber booth

What's included with the RKI 72-RA-D

• Gas Detector
• Alligator Clip
• Protective Rubber Boot
• DC Charger
• Calibration Adapter
• Three-Year Warranty

RKI GX-3R Personal Gas Detector, LEL combustibles/O₂/CO/H₂S. Get Free Shipping when you buy now from EquipTestPro.com.
