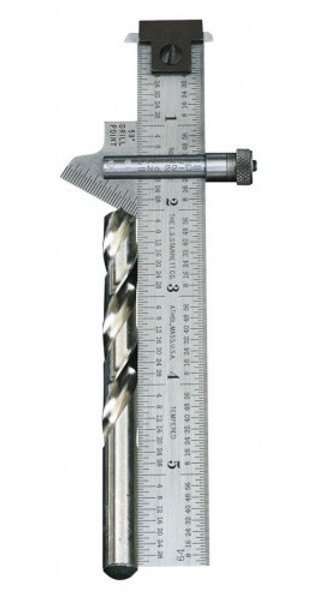

Starrett 22C Drill Point Gauge, 6", 0 to 59°
SKU: 22C
Availability: 7 to 8 Weeks Starrett 22C Offers The Starrett 22C Drill Point Gauge is a helpful instrument to have during drill grinding. It can be used to determine drill point angle as well as the correct length of drill lips that are needed. The gauge is easy to use and is also adjustable, so you can get the configuration you need. Features Helps you determine the correct drill point angle fast Finds the correct length of drill lips, so you
Availability: 7 to 8 Weeks
Starrett 22C Offers
The Starrett 22C Drill Point Gauge is a helpful instrument to have during drill grinding. It can be used to determine drill point angle as well as the correct length of drill lips that are needed. The gauge is easy to use and is also adjustable, so you can get the configuration you need.
Features
- Helps you determine the correct drill point angle fast
- Finds the correct length of drill lips, so you can get clean-cut drilling
- 59° bevel range; 32nds graduations
- Adjustable sliding head, which can lock with the thumb nut
- Shorten or extend the hook as needed on either side of the rule
- Hook can also be removed
- Functions as a plain rule, hook rule, depth gauge and slide caliper all in one
- In hook rule mode, there are machine-divided graduations in 8ths, 16ths, 32nds and 64ths
- Made in America
Applications
- Drill Grinding
Starrett 22C Specifications
Specifications
| Product Type | Drill point gauge |
| Electronic | No |
| Product Length | 6" (150 mm) blade |
| Quantity | 1 |
| Application(s) | Drill grinding |
| Color | Silver |
What's included with the Starrett 22C
- Starrett 22C Drill Point Gauge, 6", 0 to 59°
