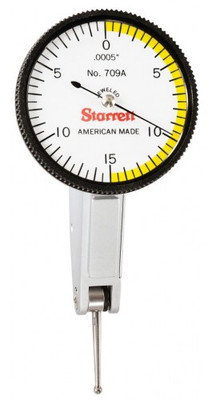

Starrett 709ACZ Dial Test Indicator with dovetail mount and attachments, 0.03" range, 0 to 15 to 0 reading

Availability: 5 to 6 Weeks

Starrett 709ACZ Offers

Use this Starrett 709ACZ Dial Test Indicator to take precise measurements. The indicator's angled head makes it easy to view the results from a variety of positions, while the included dovetail positioning mounts enable simple installation.

Features

• Angled head enables easy reading of measurements
• 3 dovetail positioning mounts are compatible with existing test indicator accessories (sold separately)
• Precision gear-driving design offers smooth, jeweled movement
• Automatic reversing contact point allows maintenance of clockwise hand rotation
• Frictionally adjustable and replaceable contacts
• Revolution count hand allows for easy reading
• Narrow body
• Satin chrome finish provides added strength
• Made in USA

Starrett 709ACZ Specifications

Specifications

Product Length	Contact Point: 0.81" (20 mm)
Graduation Measurements	Inches
Dial Color	White
Approvals	ISO
Accuracy	0.0005" graduations
Dial Reading	0 to 15 to 0
Product Width	1.38" (35mm) dial diameter
Supported Measurement Unit(s)	in
Measurement Range	0.03"
Power Source	Non-powered

What's included with the Starrett 709ACZ

• Dial Test Indicator
• Dovetail Body Clamp
• Tool Post Holder
• Swivel Post Snug with Dovetail Indicator Clamp
• Snug and Rod Unit
• Case
