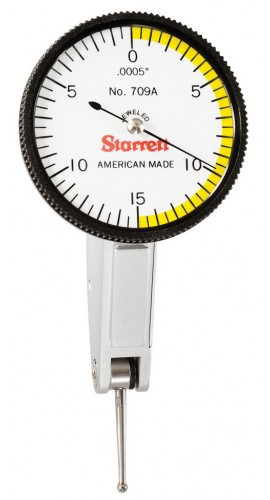

Starrett 709AZ Dial Test Indicator with dovetail mount, 0.03" range, 0 to 15 to 0 reading
SKU: 709AZ
Availability: 1 Week Starrett 709AZ Offers Use this Starrett 709AZ Dial Test Indicator to take precise measurements. The indicator’s angled head makes it easy to view the results from a variety of positions, while the included dovetail positioning mounts enable simple installation. Features Angled head enables easy reading of measurements 3 dovetail positioning mounts are compatible with existing test indicator accessories (sold separate
Availability: 1 Week
Starrett 709AZ Offers
Use this Starrett 709AZ Dial Test Indicator to take precise measurements. The indicator's angled head makes it easy to view the results from a variety of positions, while the included dovetail positioning mounts enable simple installation.
Features
- Angled head enables easy reading of measurements
- 3 dovetail positioning mounts are compatible with existing test indicator accessories (sold separately)
- Precision gear-driving design offers smooth, jeweled movement
- Automatic reversing contact point allows maintenance of clockwise hand rotation
- Frictionally adjustable and replaceable contacts
- Revolution count hand allows for easy reading
- Narrow body
- Satin chrome finish provides added strength
- Made in USA
Starrett 709AZ Specifications
Specifications
| Accuracy | 0.0005" graduations |
| Dial Reading | 0 to 15 to 0 |
| Product Width | 1.38" (35mm) dial diameter |
| Supported Measurement Unit(s) | in |
| Measurement Range | 0.03" |
| Power Source | Non-powered |
| Dial Color | White |
| Approvals | ISO |
| Product Length | Contact Point: 0.81" (20 mm) |
| Graduation Measurements | Inches |
What's included with the Starrett 709AZ
- Starrett 709AZ Dial Test Indicator with dovetail mount, 0.03" range, 0 to 15 to 0 reading
Starrett 709AZ Dial Test Indicator with dovetail mount, 0.03" range, 0 to 15 to 0 reading. Get Free Shipping when you buy now from EquipTestPro.com.
