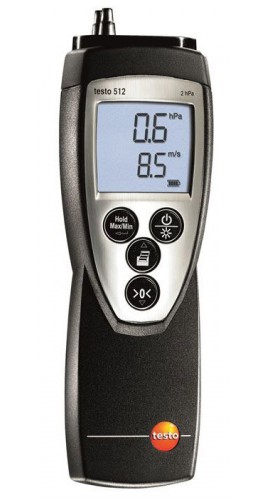

Testo 512 Manometer/Anemometer, 0-20 hPa
SKU: 512-ANEMOMETER-0-20
Availability: 3 to 4 Weeks5 to 6 Weeks Testo 512 Offers The Testo 512 with a measuring range from 0…0.29 psi can be used for quick ‘n easy filter checks when performing differential pressure checks on ventilation and a/c systems. Differential pressure measurements are carried out to see if filters still work properly or if they need to be replaced. The differential pressure meter is ideal for carrying out pitot static tube measurements in air duct
Availability: 3 to 4 Weeks5 to 6 Weeks
Testo 512 Offers
The Testo 512 with a measuring range from 0...0.29 psi can be used for quick ‘n easy filter checks when performing differential pressure checks on ventilation and a/c systems. Differential pressure measurements are carried out to see if filters still work properly or if they need to be replaced. The differential pressure meter is ideal for carrying out pitot static tube measurements in air ducts at very high air flow speeds or when the air stream is strongly polluted. The compact, rugged meter shows both the pressure as well as the air flow speed and has a measuring range from 6 to 180 fps.
Testo 512 Features
- 8 units for pressure: psi, inch H2O, inch HgkPa, hPa, Pa, mm H2O, mmHg
- 2 units for flow: fpm, m/s
- Built-in density compensation
Testo 512 Specifications
| Storage temperature | +14 to +160°F |
| Operating temperature | +32 to +140°F |
| Battery type | 9V battery |
| Battery life | 120 hr |
| Dimensions | 8 x 2.25 x 1.7 in |
| Housing material | ABS |
Pressure sensor integrated |
|
| Measuring range | 0 to +0.8 inH2O |
| Accuracy | 0.5% of f.v. |
| Resolution | 0.001 inH2O |
