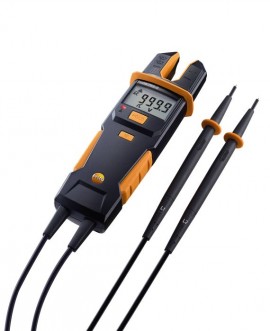

Testo 755-2 Current/Voltage Meter with Phase Rotation & Single Probe Voltage Detection
SKU: 755-2
Availability: Regular Price Testo 755-2 Offers Features Phase rotation tester and voltage range up to 1000 V Unique feature which allows the user to check for voltage using only a single lead Polarity detection for DC circuits Meter automatically detects testing in-process and selects correct meter configuration which saves time and optimizes accuracy Applications Electrical Contractors, HVAC/R Technicians, Plant Maintenance Compare – Electrica
Availability: Regular Price
Testo 755-2 Offers
Features
- Phase rotation tester and voltage range up to 1000 V
- Unique feature which allows the user to check for voltage using only a single lead
- Polarity detection for DC circuits
- Meter automatically detects testing in-process and selects correct meter configuration which saves time and optimizes accuracy
Applications
Electrical Contractors, HVAC/R Technicians, Plant Maintenance
Compare - Electrical Instrument Comparison
Testo 755-2 Specifications
Specifications
| DC Voltage | |
| Resolution | 6 to 600V/0.1V |
| Accuracy | ±(1.5% of mv + 3 Digit) |
| AC Voltage | |
| Resolution | 6 to 600V/0.1V |
| Accuracy | ±(1.5% of mv + 3 Digit) |
| AC Current | |
| Resolution | 200A/0.1A |
| Accuracy | ±(3% of mv + 3 Digit) |
| Resistance | |
| Resolution | 100kOhm/1Ohm |
| Accuracy | ±(1.0% of mv + 5 Digit) |
| General Technical Data | |
| Protection Class | IP64 |
| Storage Temperature | 5° to 140°F/-15 to +60°C |
| Overvoltage Category | CAT IV 600V; CAT III 1000V |
| Operating Temperature | 14° to 122°F/-10 to +50°C |
What's included with the Testo 755-2
- 755-2 Digital Voltage Tester
- Measuring tips
- Batteries
Testo 755-2 Current/Voltage Meter with Phase Rotation & Single Probe Voltage Detection. Great savings PLUS Free Shipping when you buy now from EquipTestPro.com.
