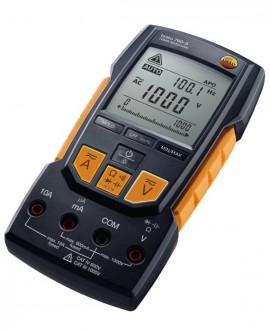

Testo 760-3 Digital Multimeter with Capacitance, TRMS, LPF, Auto Setup, Duty Cycle, Temperature, 1000V
SKU: 760-3
$374.14
Availability: 5 Days1 to 2 Weeks Testo 760-3 Offers Features 1000 V AC/DC voltage measuring range, TRMS, and Low Pass Filter Auto test-setup based upon lead connection prevents blown fuses in the meter Meter automatically detects testing in-process and selects correct meter configuration to save time and optimize accuracy Measure up to 400A with optional clamp probe adapter Applications Electrical Contractors, HVAC/R Technicians, Plant Maintenance C
Secure Checkout
Fast Shipping
Authorized Dealer
Availability: 5 Days1 to 2 Weeks
Testo 760-3 Offers
Features
- 1000 V AC/DC voltage measuring range, TRMS, and Low Pass Filter
- Auto test-setup based upon lead connection prevents blown fuses in the meter
- Meter automatically detects testing in-process and selects correct meter configuration to save time and optimize accuracy
- Measure up to 400A with optional clamp probe adapter
Applications
Electrical Contractors, HVAC/R Technicians, Plant Maintenance
Testo 760-3 Specifications
| Temperature-Type K TC | |
| Measuring Range | -4.0° to 932.0°F/-20 to +500°C |
| Accuracy | ±33.8°F(32.0° to 212.0°F)/±1°C(0 to +100°C) |
| Resolution | 0.1°F |
| DC Voltage | |
| Resolution | 600mV/0.1mV 6.000V/1mV 60.00V/10mV 600.0V/100mV |
| Accuracy | ±(0.8% of mv + 3 Digit) |
| AC Voltage | |
| Resolution | 600mV/0.1mV 6.000V/1mV 60.00V/10mV 600.0V/100mV |
| Accuracy | ±(0.8% of mv + 3 Digit) |
| DC Current | |
| Resolution | 600µA/0.1µA 6000µA/1µA 60.00mA/10µA 600.0mA/100µA 6A/1mA 10A/10mA |
| Accuracy | ±(1.5% of mv + 5 Digit) |
| AC Current | |
| Resolution | 600µA/0.1µA 6000µA/1µA 60.00mA/10µA 600.0mA/100µA 6A/1mA 10A/10mA |
| Accuracy | ±(1.5% of mv + 5 Digit) |
| Resistance | |
| Resolution | 60.00Ohm/0.01Ohm 600.0Ohm/0.1Ohm 6.000kOhm/1Ohm 60.00kOhm/10Ohm 600.0kOhm/100Ohm 6.000MOhm/1kOhm 60.00MOhm/10kOhm |
| Accuracy | ±(1.5% of mv + 3 Digit) |
| Capacitance | |
| Resolution | 6.000nF/0.001nF 60.00nF/0.01nF 600.0nF/0.1nF 6.000µF/0.001µF 60.00µF/0.01µF 600.0µF/0.1µF 6.000mF/1µF 30.00mF/10µF |
| Accuracy | ±(0.5% of mv + 3 Digit) |
| Frequency | |
| Resolution | 600.0Hz/0.1Hz 6.000kHz/1Hz 60.00kHz/10Hz 600.0kHz/100Hz 6.000MHz/1kHz 30.00MHz/10 kHz |
| Accuracy | ±(0.1% of mv + 1 Digit) |
| General Technical Data | |
| Protection class | IP64 |
| Storage Temperature | 5° to 140°F/-15 to +60°C |
| Overvoltage Category | CAT III 1000V; CAT IV 600V |
| Operating Temperature | 14° to 122°F/-10 to +50°C |
