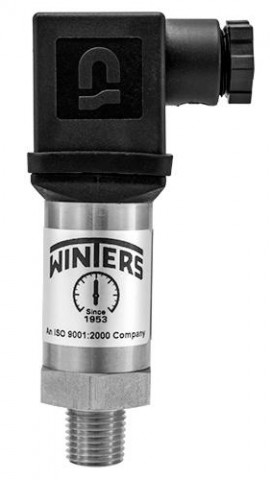

Winters LIM1104P2AN44PU General Purpose Transmitter, 30 inHg V AC
SKU: LIM1104P2AN44PU
$289.49
Availability: 8 to 9 Weeks9 to 10 Weeks Winters LIM1104P2AN44PU Offers Features Developed for use in general industry and OEM applications, where versatility and economy are requirements Compact stainless steel construction with ceramic sensor Wide range of mechanical and electrical connections ±0.5% accuracy NEMA 4X / IP65 and IP67 CE, CSA and RoHS compliant Approved for outdoor use Customizable Applications HVAC/R Refrigeration Process and automat
Secure Checkout
Fast Shipping
Authorized Dealer
Availability: 8 to 9 Weeks9 to 10 Weeks
Winters LIM1104P2AN44PU Offers
Features
- Developed for use in general industry and OEM applications, where versatility and economy are requirements
- Compact stainless steel construction with ceramic sensor
- Wide range of mechanical and electrical connections
- ±0.5% accuracy
- NEMA 4X / IP65 and IP67
- CE, CSA and RoHS compliant
- Approved for outdoor use
- Customizable
Applications
- HVAC/R
- Refrigeration
- Process and automation control
- Hydraulics and pneumatic sensing
- Pump and compressor monitoring
Winters LIM1104P2AN44PU Specifications
| Range | 30 inHg V AC |
| Over-Pressure | 15 psi |
| Burst Pressure | 44 psi |
| Output Signal | Standard 2-wire: 4-20 mA / Vs = 8 to 32 V DC Optional 3-wire: 0 to 10 V / Vs = 14-30 V DC Optional 3-wire ratiometric: Vsig = 0.5-4.5 Vs / Vs = 5 ±0.5 V DC |
| Accuracy | ±0.5% FSO |
| Permissible Load | 2-wire: Rmax = [(Vs - Vs min) / 0.02] Ω 3-wire: Rmin = 10 kΩ |
| Influence Effects | Supply: 0.05% FSO / 10 V Load: 0.05% FSO / kΩ |
| Response Time | 2-wire: <10 ms 3-wire: <3 ms |
| Measuring Rate | 1 kHz |
| Thermal Error | <±0.5% FSO / 10K |
| Permissible Temperatures | Medium: -13 to 257°F (-25 to 125°C) Electronics environment: -13 to 185°F (-25 to 85°C) Storage: -40 to 185°F (-40 to 85°C) |
| Short-circuit Protection | Permanent 3-wire ratiometric: None |
| Reverse Polarity Protection | No damage. No function. |
| Electromagnetic Protection | Emission and immunity according to EN 61326 |
| Stability | Vibration: 10 g, 25 Hz to 2 kHz according to DIN EN 60068-2-6 Shock: 500 g / 1 ms according to DIN EN 60068-2-27 |
| Pollution Degree | 4, electrical equipment for outdoor use |
| Pressure Port / Housing | 304 SS |
| Current Consumption | 2-wire: 25 mA max 3-wire voltage: 5 mA (short-circuit current 20 mA) 3-wire ratiometric: 1.5 mA |
| Long-term Stability | <±0.3% FSO/year at reference conditions |
| Operation Life | >100 x 106 cycles |
| Wetted Parts | Seals: FKM Diaphragm: Ceramic AI2 O3 96% |
| CE Conformity | EMC directive: 2004/108/EC Pressure equipment directive: 97/23/EC (module A) Valid for devices with max permissible overpressure <3000 psi |
| Weight | 0.2 lbs (120 g) |
Click here for complete specifications on the Winters LIM1104P2AN44PU
